Over the last two-and-a-half years or so I've excesively been working on this large DIY undertaking, and has been quietly in the making since. This is the development of a custom‒built 17-part hybrid analog/digital multi-synthesis engine and hardware controller.

The main operating system (OS) architecture is assembled for Teensy 4.1 32-bit ARM‒based Cortex M7 (MCU — microcontroller unit). GUI interface is running a Library to control basic graphical functions for 128×64 multi-color LED‒backlit DOT matrix LCD display module. This specifically sets interface pixel grid to 128×64‒sized ratio. Important in understanding the area in which creative decisions are made — required for coding and performed size-check of elements of all screen elements, since pixel‒perfect, in this case is the norm.

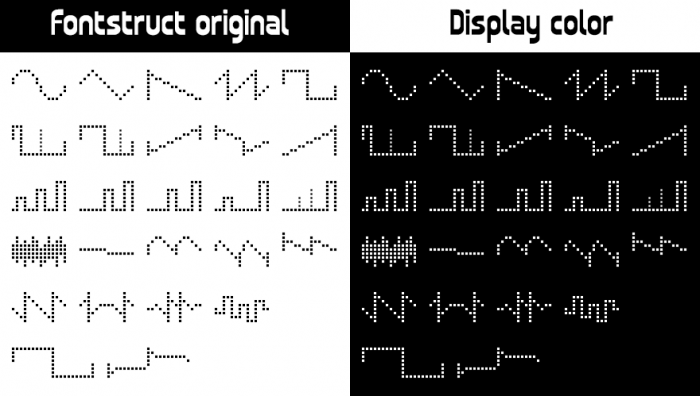

This is a set of pixelated dingbat pictographs, consisting of various waveform representations that illustrate periodic function cycles in signal processing, more specifically, sound-synthesis. Intended to supplement a collection of bitmap fonts that eventually will be designed.

Adding multiple tailor-made bitmap fonts — specifically the number of size-interpolation steps for font‒scalability, the different style fonts and additional dingbat sets to further establish various identities of the different GUI-components for now, is one still in ongoing trial-and-error testing.

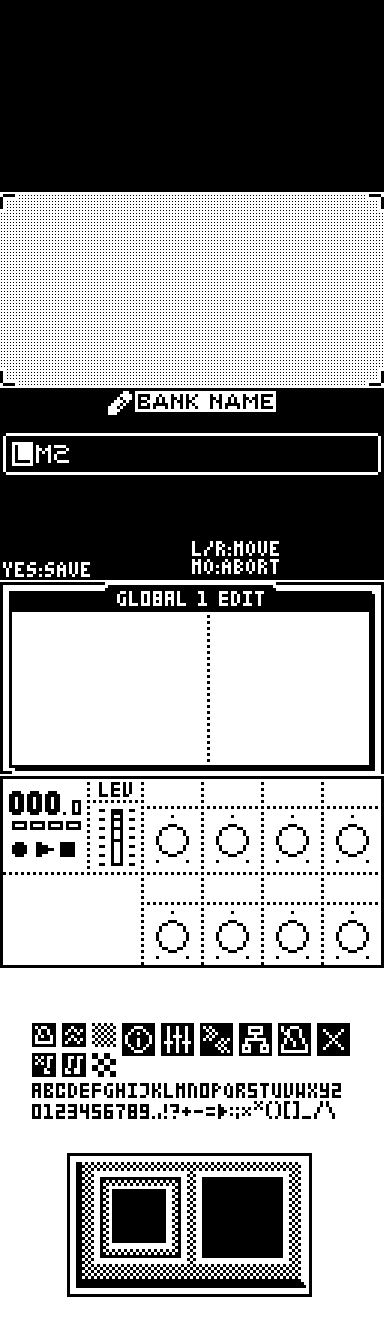

These are some GUI interface idea's. some screen elements, and the first bitmap font.
